600mm x 600mm LED Panel Light Hanging Kit , Y - Type Cable Cross Kit With Hooks
The whole hanging kit contains the below:
1. Ceiling Attachment with monuting plate;
Size:Ø40(plate)*34mm
2. Cable Gripper made from brass material with nickel plated;
Size:Ø9*26mm
3. Two none adjustable Hooks made from steel material;
Size:Ø7mm,hook width:18mm
4. 304 Stainless Steel Wire;
Main Cable:Ø1.2*1000mm
Y- Type Cable:Ø1.2*350mm each side
This Light Hanging kit is designed for the LED panels with measurement
of 600mm x 600mm and 625mm x 625mm.
The 1000mm steel cable is adjustable in height and allows for
widest variety when suspending LED panels from ceilings.
This light hanging kit has the Self-Gripping Ceiling fasteners,which are useful either a
s a ceiling fastener or a midway shelf holder. On the ceiling, the base plate allows for 3 screws,
and extra holding power. Under a shelf, the screws can fasten into thick material.
IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to
take the weight of the items being displayed, while allowing for the tension in the cables.
Description
| 1. Material | Brass+Stainless Steel Wire |

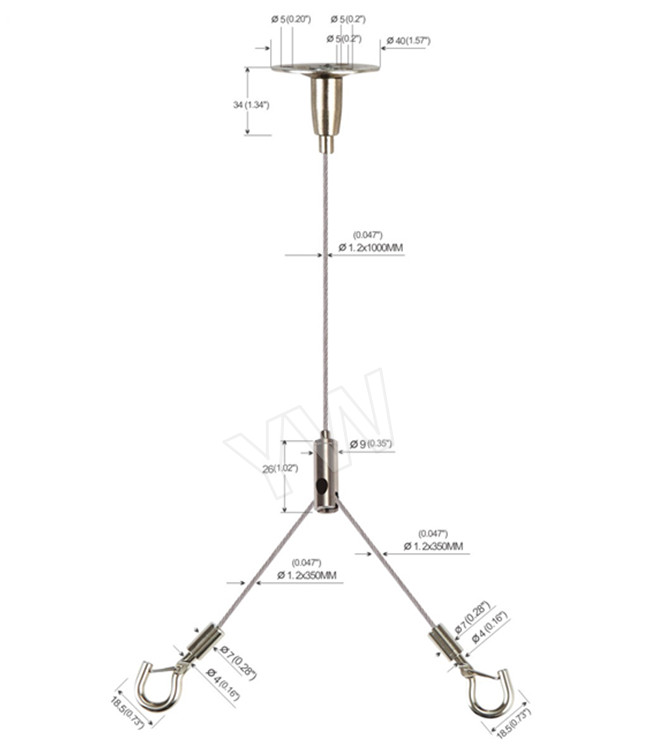

| 2. Size | Same as the drawing |
| 3. Cable Diameter and Length | Ø1.5*1000mm;Or Customize |
| 4. Finishing Color | Nickel/Chrome |
| 5. Application | Use it to set up a gorgeous ceiling to floor panel display or use multiple rows to create a unique shelving system. |
| 6. Safe Working Load | 30KG |
| 7. Content | 1 * Adjustable Center Cable Gripper,adjust the main cable length; 1 * Ceiling Attachment with mounting plate ,fixed to the ceiling; 2 * Stainless Steel wire diecast end; 2 * Hooks,clip to the LED Panels |
| 8. Advantages | 1. Quick to suspend lighting fixtures during the installation; 2. Require no tools to adjust, up or down, down or up – as often as you like; 3. Stainless steel are available in various lengths; 4. Offer the perfect solution for the suspension of the fixtures; 5. Compact design,easy taking and delivery. |
We Have Wire Suspension Kits which allow you to fit our high quality LED panels to any
flat surface, ceiling, or wall. Give Yourself The Benefits of LED Panel lighting Anywhere.
A simple solution which compliments our panels and allows you to make a very neat and
clean lighting solution.
Select the correct kit for your ceiling type:
Plaster and wood ceilings use Screw Ceiling Anchor kits
(with either 1m or 2m length cables)
The stainless steel wire cables in different diameters are strong and ready to
use (terminated) - no crimping required. Simply snip off excess.
NOTE: 2 kits are required to suspend 1 panel or sign.
Easy installation with adjustable height fittings.
